NSL2.5 StageLIFT250 kg, 551 lbs | 4 m/min, 13 ft/min | 17 kg, 37.5 lbs |

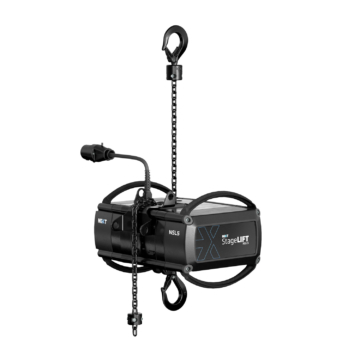

NSL5 StageLIFT500 kg, 1.102 lbs | 4 m/min, 13 ft/min | 28 kg, 61.7 lbs |

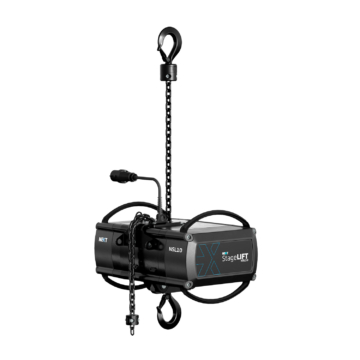

NSL10 StageLIFT1.000 kg, 2.204 lbs | 4 m/min, 13 ft/min | 47 kg, 103.6 lbs |
Electric Chain Hoists
The StageLIFT D8plus range of NEXT is designed to meet more demanding expectations for higher safety in the entertainment industry. The hoists (motors) are available as D8 plus hoists in capacities from 250 – 1000 kg, with both direct and low voltage control.
The NSL StageLIFT is an electric chain hoist which is specifically developped, rated and designed for holding loads above people. It is light and compact in design and thus perfectly suited for mobile use. All components which are in the flow of forces are statically dimensioned for the double of the nominal rated capacity. D8 Plus motors are suitable for climbing and stationary hoists without any modifications. safety factor of minimum 8:1in accordance with EN14492-2, IGVW SQP2:2018 and EN17206.
